5.0 High Brightness IPS TFT Capacitive Touch Screen Module
  • 5.0 High Brightness IPS TFT Capacitive Touch Screen Module5.0 High Brightness IPS TFT Capacitive Touch Screen Module
  • 5.0 High Brightness IPS TFT Capacitive Touch Screen Module5.0 High Brightness IPS TFT Capacitive Touch Screen Module
  • 5.0 High Brightness IPS TFT Capacitive Touch Screen Module5.0 High Brightness IPS TFT Capacitive Touch Screen Module

5.0 High Brightness IPS TFT Capacitive Touch Screen Module

Elevate your device’s visual impact with our 5.0 High Brightness IPS TFT Capacitive Touch Screen Module: It's ideal for smart devices, wearables, or automotive apps, since its 720x1920 resolution meets IPS full viewing angles (178°), With 300cd/m² brightness, even visible even in direct sunlight; 1.85mm profile and compact 66.40x120.05x1.85mm.

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD touch screen module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.


Features

1.Choose the Reliability of Tianfu

Certified to the ISO 9001 standard, with a 1:1 replication of the ISO 9001 production system.

All 5.0 high brightness IPS TFT capacitive touch screen modules, we hand out, have passed the 48-hour 85°C/85% RH high-temperature and high-humidity test, are free of bright/dark spots, and feature a lifespan of ≥ 30,000 hours.

2.Help You Control Your Cost

5.0 high brightness IPS TFT capacitive touch screen module of the same specifications can reduce your costs by 20%-30%:

With an in-house production line, we eliminate middleman markups, cutting your procurement costs by 20%-40%.

long-term partnerships with panel manufacturers further lower procurement costs by 15%.

Our flexible customized production MOQ (Minimum Order Quantity) helps you save 20% on inventory costs.

3.MOQ: 1 pc, with Flexible Customization Based on Actual Needs.

Hardware Customization: Size (non-standard sizes supported); Interfaces (LVDS/RGB/MIPI/parallel port, etc.); Backlight (edge-lit/direct-lit, adjustable color temperature); Glass (anti-glare/AR anti-reflective/anti-fingerprint); Bezel (narrow bezel/custom-shaped cutting); Connector position offset (±0.3mm accuracy); Brightness adjustment: 250~1500 cd/m² adjustable; Thickness reduction (full lamination ≤1.5mm), etc.

Software Adaptation: Supports customization of driver ICs (e.g., chips from specific manufacturers), OSD menu development, and firmware burning (with pre-installed customer logos available).

Customization Service Process: Supports full-process customization from design drawings to mass production, with an MOQ of just 1 piece, and proofing cycle 30% faster than the industry average.

4.16 Years of Accumulated Supply Chain Helps You Avoid Risks

Tianfu has established strategic cooperative relationships with key upstream raw material suppliers (including integrated circuits (ICs), glass substrates, backlights, driver chips, flexible printed circuits (FPCs), adhesive materials, etc.) and equipment manufacturers, grounded in long-term mutual trust. This partnership grants us privileged rights and benefits such as priority supply access, capacity allocation guarantees, joint development opportunities, and information sharing.

Thus, we can ensure the maximum stable supply of key materials to prevent production line shutdowns caused by material shortages. We can provide early warnings for End-of-Life (EOL) materials, proactively offer alternative solutions or stock recommendations, and mitigate production downtime risks. Leverage scale purchasing advantages and long-term bargaining power to stabilize raw material price fluctuations, delivering more competitive pricing and more stable cost projections.


Specification

Model No.

TT500TFN31A

Size

5.0 inch

Resolution

720*1920

Driver IC

ST7703

Viewing Angle

IPS Full Viewing Angle

Interface

MIPI 4 Lanes

Luminance

300cd/m2

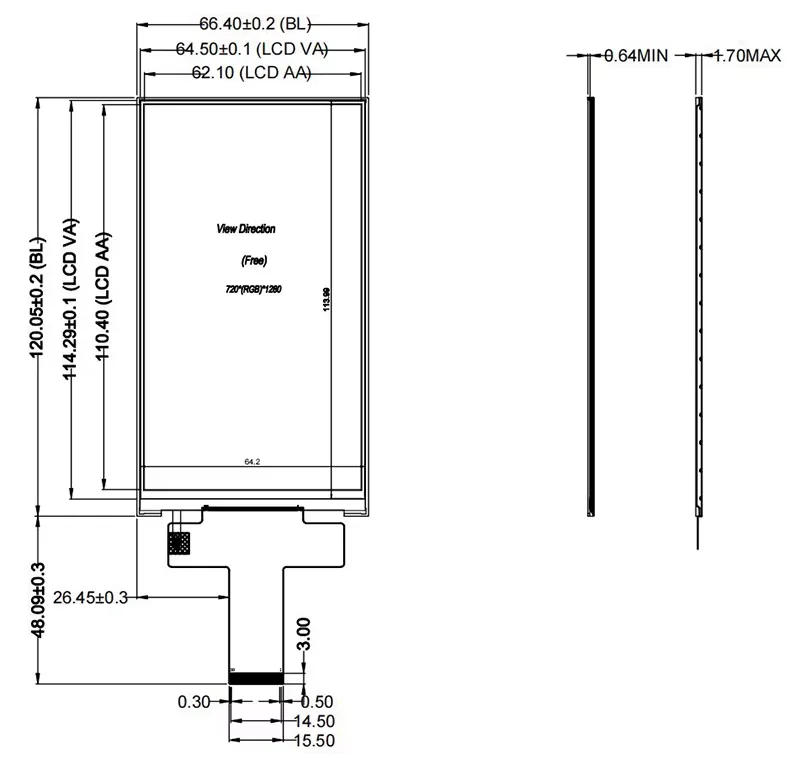

LCM Dimension

66.40*120.05*1.85mm

Active Area

62.06*110.42mm

FPC Connecting Mode

30 Pin Plug in FPC


Details


Tianfu Leading Time

Standard Products

Customized Products

Order Quantity

Delivery Time

Customization Type

Delivery Time

1-30 PCS

Immediately

B/L & FPC & TP

within 5 weeks

31-100 PCS

1 week

B/L & FPC & TP

within 5 weeks

101-500 PCS

within 2 weeks

B/L & FPC & TP

within 5 weeks

501-1000 PCS

within 3 weeks

B/L & FPC & TP

 within 5 weeks

1001-5000 PCS

within 3 weeks

BL & FPC & TP

within 6 weeks

5000+ PCS

within 4 weeks

BL & FPC & TP

within 6 weeks


Quality Inspection

TFT capacitive touch screen module of Tianfu can be applied to the aerospace field because we strictly adhere to the quality requirements of the ISO 9001 certification system through a 1:1 replication process in production. All raw materials are sourced exclusively from premium brands. Once entering the production process, every step is tested using professional detection equipment. Most importantly, before products we hand out, we conduct more extensive and precise aging tests compared to industry peers.
